Single Seat Pneumatic Divert Valve

All Products > Hydraulic & Pneumatic Equipment > Angle Seat Valve

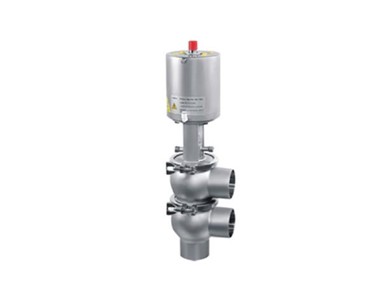

Single Seat Pneumatic Divert Valve

Supplier: Sepak Industries
Single Seat Pneumatic Divert Valve
Single Seat Pneumatic Divert Valve
Single Seat Pneumatic Divert Valve

The Single Seat Pneumatic Divert Valve is designed for precise and hygienic flow control in food, beverage, or pharmaceutical processing lines.

Description
Suitable for hygienic and precise flow control in food and beverage processing lines.
Features
  • Size Range: 25 mm (1”) – 100 mm (4”)
  • Working Temperature: -10°C to 120°C (EPDM)
  • Sterilisation in Place (SIP) Temperature: up to 140°C (max. 30 minutes)
  • Maximum Working Pressure: 10 bar
  • Compressed Air Pressure for Operation: 5–7 bar
  • Air Connections: G1/8” (BSP standard)
  • Gaskets: FPM (Viton®), FDA177.2600 compliant
  • Available Connections: DIN, SMS, RJT, IDF
  • Surface Finish: Ra = 0.5 µm (suitable for sanitary applications)
  • Double-acting pneumatic actuator and double stop actuator for enhanced control
  • External position sensor and integrated valve position regulator
  • Optional steam barrier for shaft sterilisation
  • Body jacket insulation for temperature-sensitive processes
  • Diaphragm-type valve cavity to maintain hygiene
  • Manual operation via C-TOP control unit
Available Sizes and Prices
Size Price (AUD)
25 mm (1") $1,141.88
38 mm (1½") $1,141.88
50 mm (2") $1,578.52
63 mm (2½") $2,100.00
76 mm (3") $2,632.88
100 mm (4") $5,241.23

Read more...

To contact Sepak Industries about Single Seat Pneumatic Divert Valve use Get a quote.

Features
  • Size Range: 25 mm (1”) – 100 mm (4”)
  • Working Temperature: -10°C to 120°C (EPDM)
  • Sterilisation in Place (SIP) Temperature: up to 140°C (max. 30 minutes)
  • Maximum Working Pressure: 10 bar
  • Compressed Air Pressure for Operation: 5–7 bar
  • Air Connections: G1/8” (BSP standard)
  • Gaskets: FPM (Viton®), FDA177.2600 compliant
  • Available Connections: DIN, SMS, RJT, IDF
  • Surface Finish: Ra = 0.5 µm (suitable for sanitary applications)
  • Double-acting pneumatic actuator and double stop actuator for enhanced control
  • External position sensor and integrated valve position regulator
  • Optional steam barrier for shaft sterilisation
  • Body jacket insulation for temperature-sensitive processes
  • Diaphragm-type valve cavity to maintain hygiene
  • Manual operation via C-TOP control unit
Available Sizes and Prices
Size Price (AUD)
25 mm (1") $1,141.88
38 mm (1½") $1,141.88
50 mm (2") $1,578.52
63 mm (2½") $2,100.00
76 mm (3") $2,632.88
100 mm (4") $5,241.23

Read less...

To contact Sepak Industries about Single Seat Pneumatic Divert Valve use Get a quote.
