Gorski 2 Axle Semi End Tipping Trailer ...

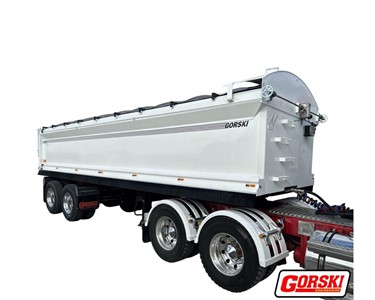

Gorski 2 Axle Semi End Tipping Trailer Hardox New - QT-ST2

Supplier: Gorski Engineering

Receive 1-3 days from order

NEW GORSKI 2 AXLE SEMI TIPPING TRAILER COMPLETE:

BODY:
"Gorski Premium" Body up to 21m3 approx.
8.000m long x 1.200m high approx.
- Body Dimensions subject to final engineering design and approval
- 5mm QT450 HARDOX side sheets with internal pressed sides and pressed front sheet.
- 6mm QT450 HARDOX Floor sheet
- 5mm QT450 HARDOX Tailgate with 50mm 2-way Side Swing kit, air operated
- "Gorski Premium" full length pressed top rails & splash guards
- Angle welded to top of side walls and tail door
- "Gorski Premium" Fabricated Heavy Duty Main bearer 200mm
- Shovel rack fitted to front of body with ergonomic steps front of body
- Spreader Chains connected to tailgate
Included: 175mm Spray Suppressant full length of body

RUNNING GEAR:
"Gorski Premium" heavy duty chassis fitted with:
-              TMC Drum Brake Axles (10 Stud 285mm)
-              TMC LMV Light-weight Airbag Suspension
-              ABC EBS Brake Control System
Compliant with ADR38

Please note: Dump Valve Kit operation through tailgate included on all Semi Trailers

RIMS & TYRES:
11R22.5 Tyres fitted to Aluminium Rims (Aluminium polished outers and Aluminium machined inners).
Compliant with ADR24

SKIDPLATE & KINGPIN:
Gorski “Premium” fabricated10mm Skidplate and 50mm Demountable Kingpin Quick Release fittings to match truck; male duomatic air couplings, 7 pin electric plug and 20mm hydraulic coupling

LANDING LEGS:
Jost A400 2 Speed Landing Legs comes with internal gear box (and 5 year warranty)

HYDRAULICS:
Hidromas5 Stage telescopic hoist w/ chrome plated stages, 45T approx

LIGHTING:
LED Side Lamps x 7 per side, LED Rear Lamps x 4 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker.
- "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS.
Compliant with ADR 13

PAINT:
Body ("Gorski" white) and Chassis Rails (Black) finished using hi-grade industrial paint (2 Pac). Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers.
***Please note: to match colour to your truck cabin in a specific white may incur an additional fee. It is also important to mention that we do not paint inside the tipper body.

TARP:
Razor electric remote control tarp kit, Black PVC
**Please note: The premium amperage for supply from vehicle to your Razor Tarp Motor is 5 Amps. If your prime mover is unable to supply this amperage you may need your auto elec for further works after delivery.
