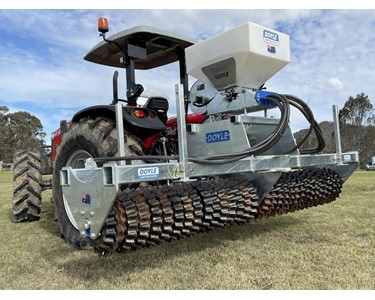

The DOYLE SSB400 Air Seeder is an Australian-built solution designed for efficient one-pass cultivation and seeding, easily converting your tillage machine into a cultivation-seeding rig.

Product Overview

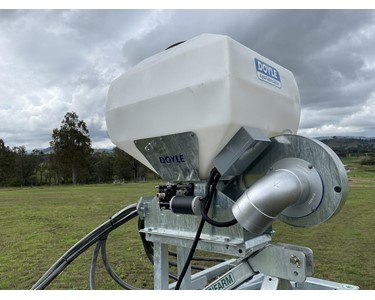

The DOYLE SSB400 Air Seeder features a robust Australian-designed and built system with a hot-dip galvanised frame and a 400-litre poly hopper, enabling quick conversion of existing tillage machines into efficient single-pass seeding units. This updated model boasts enhanced versatility, an independent outlet design for compatibility with various machines, and hardware constructed for rigorous environments.

Key Features

All-Australian build for unmatched durability and performance.
Hot-dip galvanised frame and stainless steel/high-density poly metering components for longevity.
Larger 400-litre hopper for minimised downtime.
Heavy-duty, adaptable construction for mounting on all machines.
Outlet-independent design for easy adaption to varying implements.
Easy and accurate calibration with step-less adjustment.
Unique metering rotor capable of outputs from approximately 10–300 kg/hour.
Single rotor metering for all seed types, from clover to faba beans and multi-species mixes.
Capable of seeding widths up to 6.0 m (8.0 m with secondary heads).
HDPE seed meter rotor, aluminium high-capacity fan, and industrial worm drive motor for reliable operation.
Standard with 8 outlets (customisable from 1–12 outlets; custom diameters available).
Tool-less low/high rate (8–300 kg/hour) seed rate delivery.
In-cab step-less seed rate adjustment and seed meter RPM readout for operator convenience.
Headland control feature and supplied with 20 m air seeder hose and seed spreader plates.
Options available: outlet distributor plates, mechanical “Vari-box” ground speed drive, extra heads, customised outlets, seeding units and mounting/walkway frames.

Specifications

Working Width	0–6,000 mm
Hopper Capacity	400 Litre Poly Bin
Standard Seed Outlets	8 x 32 mm diameter (custom 1–12 outlets, 25–63 mm available)
Power Requirements	12V DC, 40A
Seed Meter Rotor Motor	12V, 200W, 10–64 rpm industrial right-angle gearbox
Fan Motor	12V, 200W, 3,200 rpm aluminium fan (>8 m/s air delivery at outlets)
Seed Rate Delivery	8–300 kg/hour, tool-less adjustment
In-cab Controls	Step-less seed meter rate control, seed meter RPM readout, headland control

Optional Accessories

Outlet distributor plates
Mechanical “Vari-box” ground speed drive
Primary or secondary heads
Custom outlets and seeding units
Mounting frames and walkway frames

Product Overview

Key Features

All-Australian build for unmatched durability and performance.
Hot-dip galvanised frame and stainless steel/high-density poly metering components for longevity.
Larger 400-litre hopper for minimised downtime.
Heavy-duty, adaptable construction for mounting on all machines.
Outlet-independent design for easy adaption to varying implements.
Easy and accurate calibration with step-less adjustment.
Unique metering rotor capable of outputs from approximately 10–300 kg/hour.
Single rotor metering for all seed types, from clover to faba beans and multi-species mixes.
Capable of seeding widths up to 6.0 m (8.0 m with secondary heads).
HDPE seed meter rotor, aluminium high-capacity fan, and industrial worm drive motor for reliable operation.
Standard with 8 outlets (customisable from 1–12 outlets; custom diameters available).
Tool-less low/high rate (8–300 kg/hour) seed rate delivery.
In-cab step-less seed rate adjustment and seed meter RPM readout for operator convenience.
Headland control feature and supplied with 20 m air seeder hose and seed spreader plates.
Options available: outlet distributor plates, mechanical “Vari-box” ground speed drive, extra heads, customised outlets, seeding units and mounting/walkway frames.

Specifications

Working Width	0–6,000 mm
Hopper Capacity	400 Litre Poly Bin
Standard Seed Outlets	8 x 32 mm diameter (custom 1–12 outlets, 25–63 mm available)
Power Requirements	12V DC, 40A
Seed Meter Rotor Motor	12V, 200W, 10–64 rpm industrial right-angle gearbox
Fan Motor	12V, 200W, 3,200 rpm aluminium fan (>8 m/s air delivery at outlets)
Seed Rate Delivery	8–300 kg/hour, tool-less adjustment
In-cab Controls	Step-less seed meter rate control, seed meter RPM readout, headland control
