Crane Truck | 2024 SITRAK T5G 330

Supplier: BCI Truck

Receive 1-3 days from order

General

Year: 2024
Manufacturer: SITRAK
Model: T5G 330
Condition: New
Stock Number: T285

Description

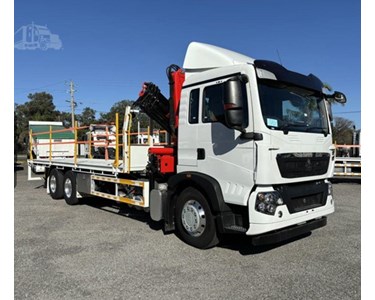

SITRAK T5G 6X4 CRANE TRUCK – SANY PALFINGER SPK15500 (Stock #T283)

A serious workhorse built for heavy lifting and long hauls. This Sitrak T5G 6x4 cab chassis comes paired with the proven Sany Palfinger SPK15500 hydraulic crane — a joint-venture build combining Palfinger's Austrian engineering with Sany's manufacturing scale. Ideal for builders, transport operators, plant hire, and anyone who needs to load and go without a second machine on site.

TRUCK HIGHLIGHTS – Sitrak T5G 6x4

Engine: MC07 6.87L, 330HP / 240kW @ 2300rpm, 1250Nm torque @ 1200–1800rpm
Transmission: Allison 3000 fully automatic (5-speed)
GCM: 40,000kg | Front axle 7,000kg / Rear axles 18,000kg rated
Wheelbase: 5,600 + 1,400mm | Overall length 11,030mm
Suspension: 3-leaf parabolic front / 8-bag air rear
Safety: EBS + HSA (Hill Start Assist), dual-circuit disc brakes, EVB engine brake, spring-stored parking brake
Driveline: MCY11 disc rear axle (4.63 ratio), differential locks and cross locks for traction when conditions get nasty
Steering: ZF8098 power steering, 17.5m turning circle
Cabin: Comfortable 2-seat T5G-M cab with sun visor and side skirts
Tank: 300L fuel capacity
Premium components: Continental VDO display, Voss connectors, alloy rims, alloy air tank for reduced tare
Top speed: 110 km/h | Max gradeability: 36.5%

CRANE HIGHLIGHTS – Sany Palfinger SPK15500

Lifting moment: 14.6 tonne-metres (143.2 kNm)
Max lifting capacity: 6,200kg
Max hydraulic outreach: 12.4m with 4 hydraulic boom extensions
Slewing angle: 420° continuous
Operating pressure: 30 MPa (300 bar)
Pump capacity: 40–60 L/min
Capacity at reach: 6,200kg close-in / 3,260kg mid / 2,380kg / down to 910kg fully extended at 12m+
Compliance: EN12999 H1/B3 classification
Stabilisers: STZS3 with hydraulic outriggers, stable footprint up to 5.6m wide
Safety features: Overload protection (OSK), emergency cut-off, load-holding valves on all rams

WHY THIS COMBINATION WORKS

The SPK15500's 14.6 tm rating gives you genuine pick-and-carry capability for pallets of brick, steel, machinery, and site materials, while the Sitrak's 6x4 driveline and air-bag rear keeps payload comfortable on the road. The Allison auto removes driver fatigue on long days, and the dual diff/cross lock setup means soft job sites won't strand you.

Interior

Drive Side: Right Hand Drive
