Versatile 4-in-1 loader for scooping, grabbing, and leveling tasks.

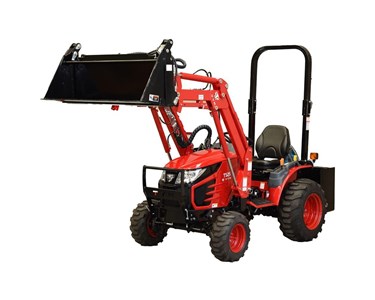

The TYM TS25 Compact Tractor with a 4-in-1 loader is engineered for versatility and strength, making it suitable for a variety of jobs, including scooping, grabbing, leveling, landscaping, and general maintenance. Its quick-detach loader and joystick controls ensure ease of operation and precision while working.

Features

Quick-detach 4-in-1 bucket loader for multi-purpose tasks
Joystick controls for smooth and precise operation
Bucket level indicator for optimal performance
Grille guard for enhanced protection
Robust design for increased reliability and durability
Ideal for landscaping, farming, and property maintenance

Specifications

Loader Model	TX25SL
Tractor Model	TS25
Maximum Lift Height	1,939 mm
Clearance with Attachment Level	1,758 mm
Clearance with Attachment Dumped (45°)	1,315 mm
Reach at Maximum Height (45°)	500 mm
Maximum Dump Angle	55°
Reach with Attachment on Ground	1,390 mm
Attachment Rollback Angle	45°
Digging Depth Below Grade	115 mm
Overall Height in Carry Position	1,206 mm
Depth of Attachment (to back of inner shell)	480 mm
Height of Attachment	461 mm
Depth of Attachment (to pivot pin)	635 mm
Lift Capacity to Full Height (pivot pins)	681 kg
Breakout Force at Ground Level (pivot pins)	1,172 kg
Rated Operating Load (counterweight on 3PL)	300/200 kg

To contact The Mower Supastore about TYM TS25 Compact Tractor with 4-in-1 Loader use Get a quote.

Features

Quick-detach 4-in-1 bucket loader for multi-purpose tasks
Joystick controls for smooth and precise operation
Bucket level indicator for optimal performance
Grille guard for enhanced protection
Robust design for increased reliability and durability
Ideal for landscaping, farming, and property maintenance

Specifications

Loader Model	TX25SL
Tractor Model	TS25
Maximum Lift Height	1,939 mm
Clearance with Attachment Level	1,758 mm
Clearance with Attachment Dumped (45°)	1,315 mm
Reach at Maximum Height (45°)	500 mm
Maximum Dump Angle	55°
Reach with Attachment on Ground	1,390 mm
Attachment Rollback Angle	45°
Digging Depth Below Grade	115 mm
Overall Height in Carry Position	1,206 mm
Depth of Attachment (to back of inner shell)	480 mm
Height of Attachment	461 mm
Depth of Attachment (to pivot pin)	635 mm
Lift Capacity to Full Height (pivot pins)	681 kg
Breakout Force at Ground Level (pivot pins)	1,172 kg
Rated Operating Load (counterweight on 3PL)	300/200 kg
