Industrial Edge AI Computer – Shuttle SPCNV13

The Shuttle SPCNV13 is an ultra-compact industrial edge AI computer designed to deliver exceptional AI performance in demanding environments.

Ultra-compact design with 100 TOPS AI performance.

Receive 4+ weeks from order

Overview

The Shuttle SPCNV13 Industrial Edge AI Computer is a powerful solution for AI edge computing, featuring NVIDIA Edge Computing technology. It is engineered to handle demanding applications, such as smart manufacturing, autonomous robotics, and intelligent transportation, with up to 100 TOPS of AI processing power.

Key Features

High-Performance NVIDIA Edge Computing: Built on the NVIDIA Jetson Orin NX architecture, it supports CUDA®, TensorRT, and JetPack SDK for accelerated AI inference and deep learning.
Ultra-Compact, Rugged Design: The palm-sized unit weighs only 0.7 kg and is certified to MIL-STD-810G and EN50155 standards, making it suitable for harsh environments.
Wide Temperature & Power Range: Operates from –20 °C to +55 °C with a 12–24 V DC power input, ideal for field installations and remote locations.
Flexible Connectivity: Features dual Gigabit LAN, HDMI, USB 3.2, and serial ports for connecting multiple sensors and devices.
Versatile Mounting: Supports VESA, DIN-rail, and wall mounting for easy integration into various platforms.

Applications

The SPCNV13 is designed for a range of applications:

Smart Manufacturing & Quality Control: Enables real-time defect detection and predictive maintenance.
Autonomous Robotics: Facilitates AI-driven navigation and object detection.
Intelligent Transportation & Traffic Management: Supports license plate recognition and vehicle counting.
Retail & Smart City Solutions: Enhances customer behaviour analysis and security surveillance.
IoT Gateways & Remote Sites: Provides secure, low-latency AI data processing.

Technical Specifications

Below are the detailed specifications of the Shuttle SPCNV13:

FORM FACTOR	Rugged aluminium chassis
PROCESSOR	JETSON Orin™ NX 8GB (70 TOPs) 10W to 20W, JETSON Orin™ NX 16GB (100 TOPs) 10W to 25W
MEMORY	8GB/16GB 128-bit LPDDR5 @2133MHz, 102.4GB/s
VIDEO OUTPUT	HDMI 1.4b (1920×1080@60Hz)*1
ETHERNET	1st Lan: Realtek RTL8111HNI, 1.0GbE; 2nd Lan: Intel I226-V LAN controller, 2.5GbE
STORAGE INTERFACE	SSD M.2 M 2280 (PCIe)

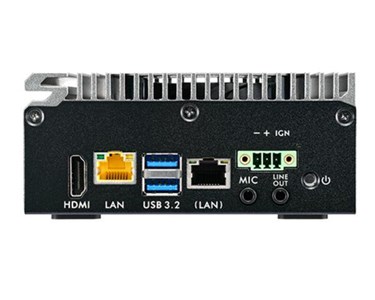

FRONT PANEL	1x USB Gen2 (Type A), 1x USB OTG 3.2 Gen2 (Type A), 1x RJ-45 (Intel 2.5G Lan), 1x RJ-45 (Realtek 1.0G Lan)
BACK PANEL	DIO1, RS-232/422/485(DB-91)
DIMENSIONS	120(L) x 75(W) x 51(H) mm
POWER	12V~24V DC in by 3-pin terminal block
ACCESSORIES	VESA Mount 100 x 100 mm, Ear Mount, Din Rail Mount 50 x 50 mm, Din Rail Clip
EXPANSION SLOT	1x M.2 2280 M Key / M.2 2230 E key slot support SATA Gen 1
OS SUPPORT	Linux Ubuntu 22.04
NET WEIGHT	0.7KG
OPERATING TEMPERATURE	-20°C ~55°C
RELATIVE HUMIDITY	10% – 90% RH (non-condensing)
EMC	CE, FCC, VCCI BSMI
SAFETY	CB, cTUVus, CEC, BSMI
WLAN	1 x M.2 2230 E key (Option) Intel WiFi Module (802.11 a/b/g/n/ac) + BT 5.0, Realtek RTL8821CE (802.11 a/b/g/n/ac) + BT 5.0, External antenna (Dipole)

Local Sales, Service & Support

Metromatics offers comprehensive local sales, service, and support for the Shuttle SPCNV13 in Australia. From pre-sales consultation to system integration and ongoing technical assistance, the Brisbane-based team ensures your AI Edge Computing solution is reliable and fully supported.
