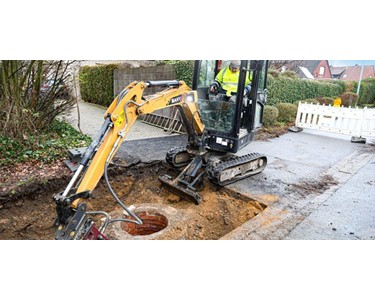

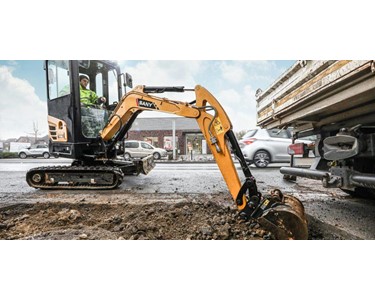

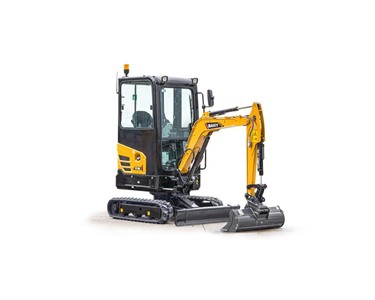

The SANY SY18C and SY18U mini excavators deliver outstanding digging performance, precision control, and stability in a highly portable 1.8-tonne package. Powered by a Yanmar 3TNV80F Stage V diesel engine, both models provide 14.6 kW at 2,400 rpm of efficient, low-noise output. A higher bulldozer blade height improves grading efficiency and earthmoving capacity, while the load-sensing hydraulic system ensures smooth, responsive operation and reduced fuel consumption.

The SY18U’s zero-tail configuration provides exceptional manoeuvrability in confined spaces, while the SY18C features a conventional tail design that delivers superior digging stability and reach. Both are available with either an open canopy or enclosed FOPS/ROPS-certified cabin, featuring a suspension seat and intuitive controls for operator comfort. Designed for tight urban sites, landscaping, and utility work, these machines are easy to transport thanks to their light weight and compact frame and come standard with all the features you will need — without compromising strength or performance.

Key Features

• Reliable Yanmar 3TNV80F engine
• Zero-tail swing (SY18U)
• Adjustable undercarriage (980-1,350mm)
• Load-sensing hydraulic system
• Enhanced dozer blade design
• Closed cabin, FOPS/ROPS certified (SY18C)
• Optional secondary auxiliary circuit
• LED spotlights

General Information

• Weight

1910 / 1925 kg

• Standard bucket capacity

0.04 m³

• Transport length

3665 / 3515 mm

• Transport width

980 / 1350 mm

• Height over cabin/ROPS

2410 / 2370 mm

• Engine

Yanmar 3TNV80F

• Rated Power

14.6 kW

• Engine Revolutions

2400 rpm

• Emission Stage

Stage V

• Max. digging depth

2360 mm

• Max. digging reach

4000 mm

• Min. Swing radius

1705 mm

• Bucket digging force (ISO)

15.2 kN

• Arm digging force (ISO)

9.2 kN

• Max. oilflow

28 l/min
