APS Technology Australia - APS iMCB™ (Smart Metering Circuit Breaker)

Supplier: APS Technology Australia Pty Ltd

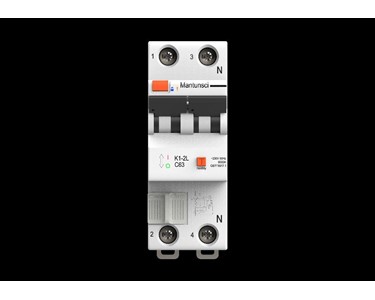

APS iMCB™ (Smart Metering Circuit Breaker)

The APS iMCB™ is an intelligent miniature circuit breaker combining electrical protection, real-time metering, monitoring, automation, and IoT connectivity in one DIN-rail device—ideal for smart energy management and modern electrical systems.

Specifications of this Product

Category	Specification
Protection Functions	Overload, short circuit, over/under voltage, high temperature, arcing fault, phase loss, unbalance

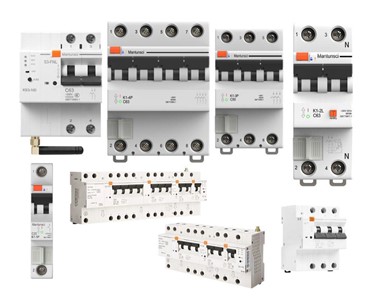

Poles	1P, 2P, 3P, 4P
Rated Current	10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A
Breaking Capacity	6 kA (IEC 60898-1)
Tripping Curves	B (3–5 In), C (5–10 In), D (10–14 In)
Voltage Rating	230/400–240/415 VAC (operational 90–250 VAC)
Metering	Voltage, current, power, energy (kWh), temperature
Communication (via module)	Wi-Fi, LAN, RS485, NB-IoT, GSM/GPRS, Zigbee, LoRa, TCP/IP
Power Supply Module	100–250 VAC input → 12 VDC output, Class II surge protection
Mechanical Life	20,000 cycles
Electrical Life	10,000 cycles
Module Size	1.5–5 modules (18 mm per module)
Mounting	Standard 35 mm DIN rail
Operating Temperature	–15°C to +40°C
Compliance	IEC 60898-1, CE, CCC
Platform Integration	MTS3 Smart Electric Safety & Power Management System

Features of this Product

Combines circuit protection, metering, and monitoring in one device
Real-time measurement of voltage, current, power, energy, and temperature
Adjustable maximum current and power limits
Arc-fault detection and early fire hazard warnings
Over/under-voltage and phase-loss protection
Remote ON/OFF control and automation scheduling
Event logging and fault diagnostics
Modular DIN-rail design with easy expansion
Supports clustered management of up to 32 breakers

Applications of this Product

Industrial Facilities

Manufacturing and packaging lines
Motor control circuits
HVAC and pump systems
Industrial distribution boards

Commercial Buildings

Office buildings and retail centres
Hotels and hospitality facilities
Data centres and commercial complexes

Public Infrastructure

Schools and universities
Hospitals and healthcare facilities
Government buildings and transport hubs

Energy Management & Safety

Sub-circuit energy monitoring
Load balancing and peak shaving
Predictive maintenance and fault tracing
Fire safety and electrical hazard prevention

Why Choose This Product

Combines advanced protection and smart energy monitoring in one breaker
Improves electrical safety and reduces fire and fault risks
Enables predictive maintenance and energy optimisation
Reduces panel wiring and space requirements
Supports smart buildings and Industry 4.0 initiatives
Backed by APS Technology’s MTS3 intelligent power management platform

Specifications of this Product

Category	Specification
Protection Functions	Overload, short circuit, over/under voltage, high temperature, arcing fault, phase loss, unbalance
Poles	1P, 2P, 3P, 4P
Rated Current	10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A
Breaking Capacity	6 kA (IEC 60898-1)
Tripping Curves	B (3–5 In), C (5–10 In), D (10–14 In)
Voltage Rating	230/400–240/415 VAC (operational 90–250 VAC)
Metering	Voltage, current, power, energy (kWh), temperature
Communication (via module)	Wi-Fi, LAN, RS485, NB-IoT, GSM/GPRS, Zigbee, LoRa, TCP/IP
Power Supply Module	100–250 VAC input → 12 VDC output, Class II surge protection
Mechanical Life	20,000 cycles
Electrical Life	10,000 cycles
Module Size	1.5–5 modules (18 mm per module)
Mounting	Standard 35 mm DIN rail
Operating Temperature	–15°C to +40°C
Compliance	IEC 60898-1, CE, CCC
Platform Integration	MTS3 Smart Electric Safety & Power Management System

Features of this Product

Combines circuit protection, metering, and monitoring in one device
Real-time measurement of voltage, current, power, energy, and temperature
Adjustable maximum current and power limits
Arc-fault detection and early fire hazard warnings
Over/under-voltage and phase-loss protection
Remote ON/OFF control and automation scheduling
Event logging and fault diagnostics
Modular DIN-rail design with easy expansion
Supports clustered management of up to 32 breakers

Applications of this Product

Industrial Facilities

Manufacturing and packaging lines
Motor control circuits
HVAC and pump systems
Industrial distribution boards

Commercial Buildings

Office buildings and retail centres
Hotels and hospitality facilities
Data centres and commercial complexes

Public Infrastructure

Schools and universities
Hospitals and healthcare facilities
Government buildings and transport hubs

Energy Management & Safety

Sub-circuit energy monitoring
Load balancing and peak shaving
Predictive maintenance and fault tracing
Fire safety and electrical hazard prevention

Why Choose This Product

Combines advanced protection and smart energy monitoring in one breaker
Improves electrical safety and reduces fire and fault risks
Enables predictive maintenance and energy optimisation
Reduces panel wiring and space requirements
Supports smart buildings and Industry 4.0 initiatives
Backed by APS Technology’s MTS3 intelligent power management platform
